Silver Fiber / Plated Fabrics

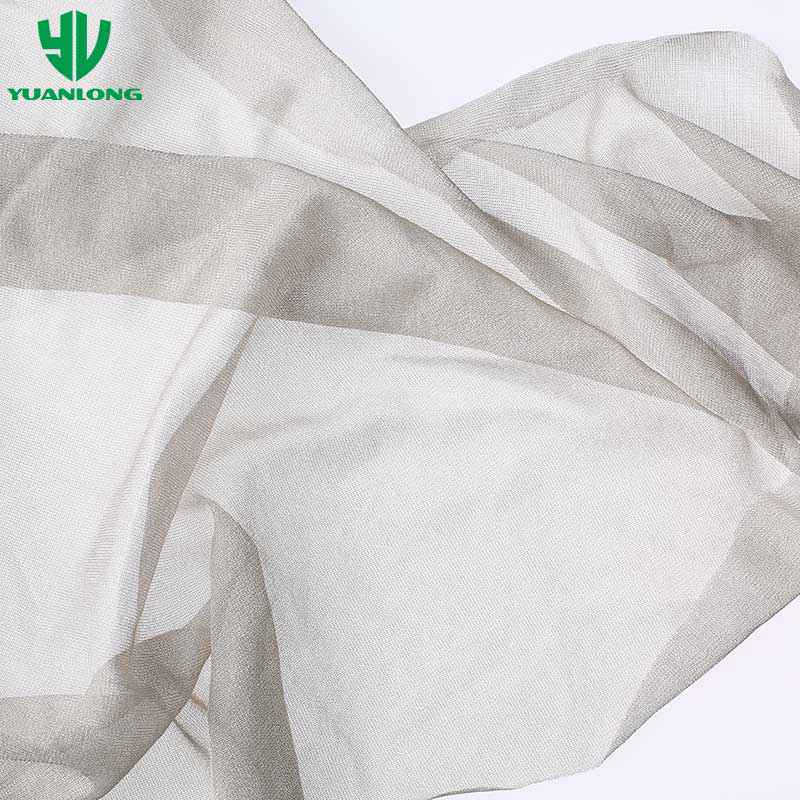

Double-faced Silver Fiber & Modal Woven Fabric

Model No.: YL-DSL100

Composition: Face 100% modal, Back 100% silver fiber

Weight: 160 g/sqm

Width: 150 cm

Product Features

Double-faced silver fiber & modal woven fabric is with 100% silver fiber on one side and 100% modal on the other side. So it has good conductive / shielding performance as well as actual textile characteristics. This fabric is usually used for protection against high frequency electromagnetic radiation, with high screening attenuation even at very high frequencies, and can also be grounded for shielding low frequency electric fields.

Technical Data
CompositionFace 100% modal, Back 100% silver fiber
Weight160 g/sqm
Width150 cm
Surface Resistivity< 0.5 Ohm/sq
Shielding Effectiveness> 50 dB / 99.999% (10MHz - 3GHz)


Other Colors AvailableWeights
Purplish Red107 g/sqm
Pink A157 g/sqm
Pink C162 g/sqm
Gray169 g/sqm
Pink B183 g/sqm
Pink D192 g/sqm
Custom---
Application

Clothes,

Curtain,

Bedding,

Grounding,

Medical care, etc.

Test Report

REACH compliant

Care Notes

Wash gently no higher than 30°C

Only neutral detergent

No bleaching

No drying in tumble dryer

No ironing

Notices of Silver Fiber/Plated Products

Our silver fiber fabrics do not contain any nano-silver but a solid metallic silver coating.

The silver coating will be oxidized after exposed to the air for a long time, resulting in discoloration. And, however, it has no effect on the conductive / shielding performance.
