Silver Fiber / Plated Fabrics

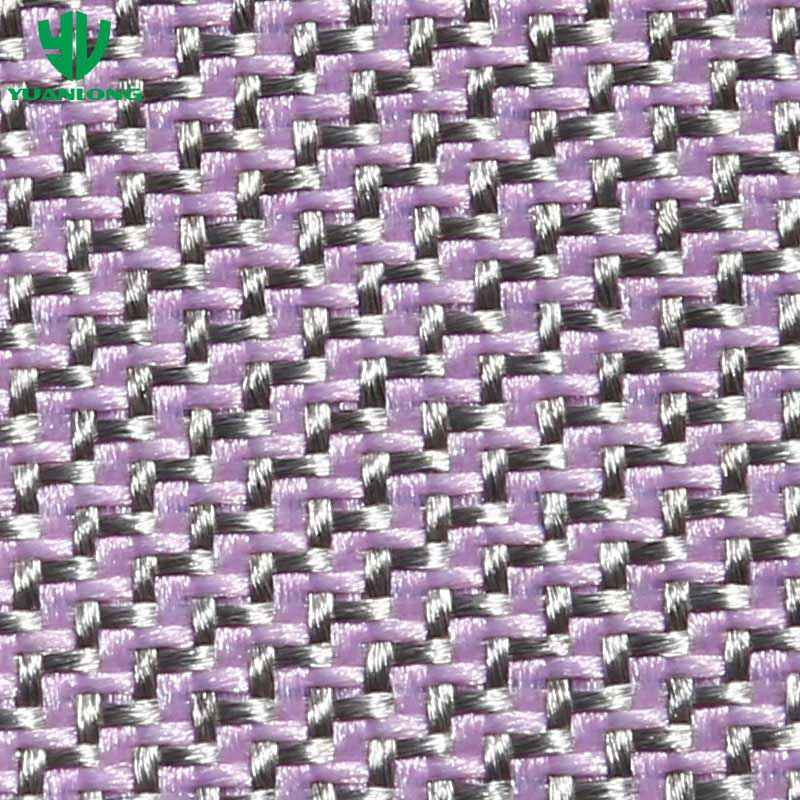

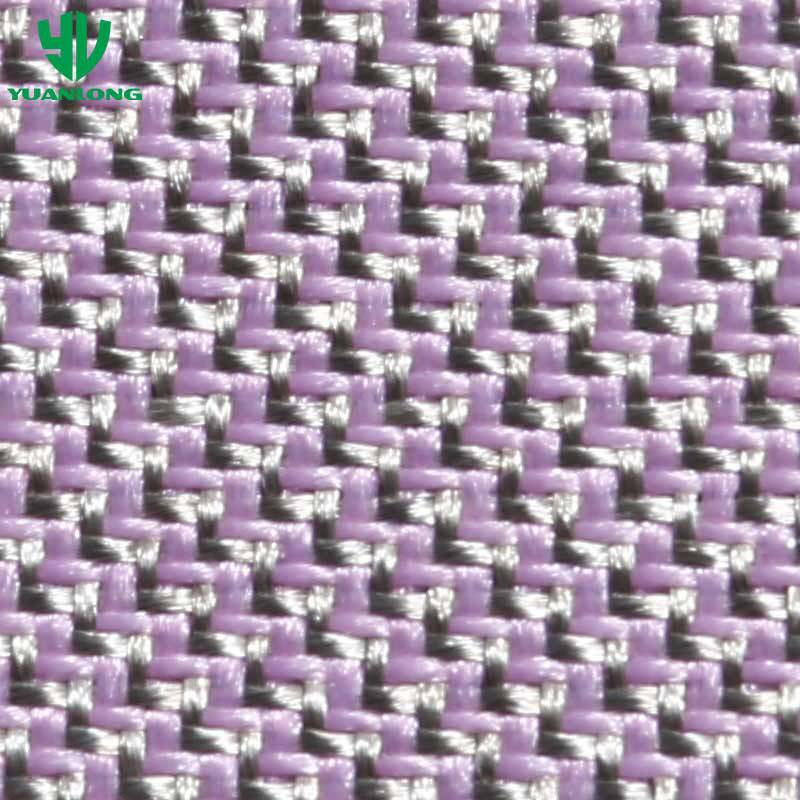

60% Silver Fiber Colored Woven Fabric

Model No.: YL-SL60C

Composition: 60% Silver fiber / 40% Polyester

Weight: 100 g/sqm

Width: 150 cm

Product Features

60% silver fiber colored woven fabric is made with 60% silver fiber and 40% polyester. So it has good conductive / shielding performance as well as actual textile characteristics. This fabric is usually used for protection against high frequency electromagnetic radiation, with high screening attenuation even at high frequencies, and can also be grounded for shielding low frequency electric fields.

Technical Data
Composition60% Silver fiber / 40% Polyester
Weight100 g/sqm
Width150 cm
Surface Resistivity< 0.6 Ohm/sq
Shielding Effectiveness> 50 dB / 99.999% (10MHz - 3GHz)

Other Colors AvailableWeights
Purplish Red88 g/sqm
Light Pink100 g/sqm
Purple100 g/sqm
Dark Pink113 g/sqm
Gray113 g/sqm

Garment, Curtain, Bedding, Medical Care, Wall Covering, Grounding, etc.

Care Notes

Wash gently no higher than 30°C

Only neutral detergent

No bleaching

No drying in tumble dryer

No ironing

Notices of Silver Fiber/Plated Products

Our silver fiber fabrics do not contain any nano-silver but a solid metallic silver coating.

The silver coating will be oxidized after exposed to the air for a long time, resulting in discoloration. And, however, it has no effect on the conductive / shielding performance.
