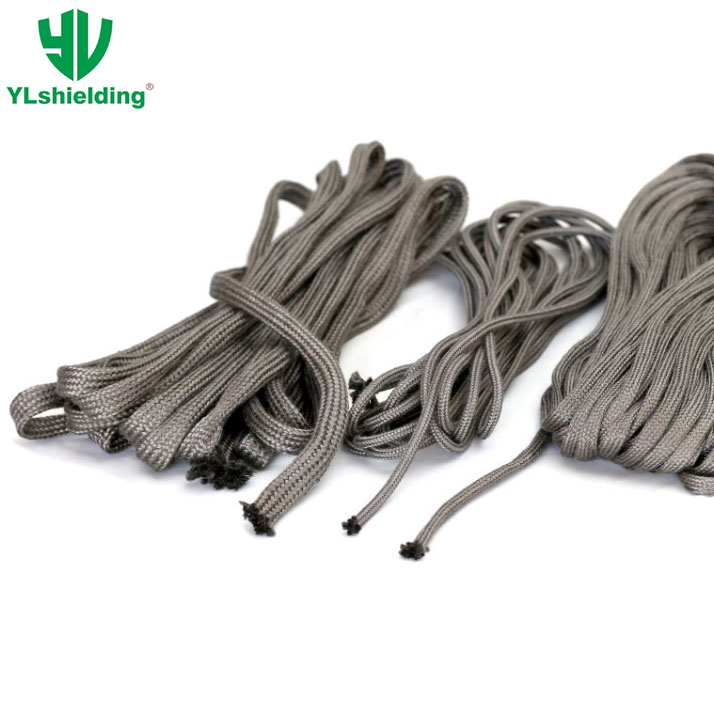

Stainless Steel Fiber Braided Ropes

Material: 100% stainless steel fiber,

70% stainless steel fiber and

30% PBO,

100% PBO

Size: Diameter 4mm / 5mm / 6mm / 7mm

/ 8mm / Custom (Round Type)

4x4mm / 5x5mm / 6x6mm / 7x7mm

/ 8x8mm / Custom (Square Type)

Inquire Now Add to Cart

Product Features

Braided Ropes

1) 100% stainless steel fiber braided rope has both heat resistance and mechanical durability up to 700℃. They are widely used in various shapes of covering materials or fixed materials within the high temperature range.

2) The braided rope of 70% stainless steel fiber mixed with 30% PBO, combined with the high-temperature resistance of stainless steel and the softness of PBO. It can withstand temperatures up to 550℃. They are commonly used as transportation rollers for winding and isolating materials in and out of the furnace.

3) The braided rope of 100% PBO. These 100% PBO ropes have high strength and temperature resistance up to 450℃. They are usually used as cover materials for quenching rings.

Technical Data

Round Type

Model No.	Material	Diameter(mm)	Weight(g/m)
YL-BR04R	100% stainless steel fiber, 70% stainless steel fiber mixed with 30% PBO, 100% PBO	4	55
YL-BR05R		5	72
YL-BR06R		6	92
YL-BR07R		7	125
YL-BR08R		8	157
-		Custom	Custom

Square Type

Model No.	Material	Size(mm)	Weight(g/m)
YL-BR04S	100% stainless steel fiber, 70% stainless steel fiber mixed with 30% PBO, 100% PBO	4x4	55
YL-BR05S		5x5	72
YL-BR06S		6x6	92
YL-BR07S		7x7	125
YL-BR08S		8x8	157
-		Custom	Custom

Application

Covering materials or fixed materials within the high temperature range

Transportation rollers for winding and isolating materials in and out of the furnace

Cover materials for quenching rings
