Heat Resistant Fabrics / Tapes / Sleeves

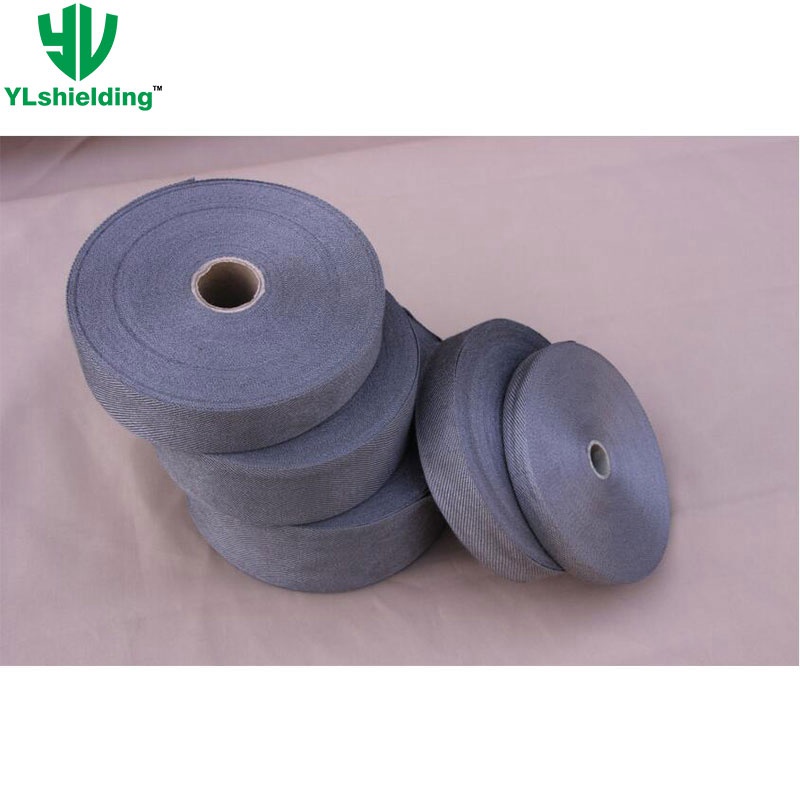

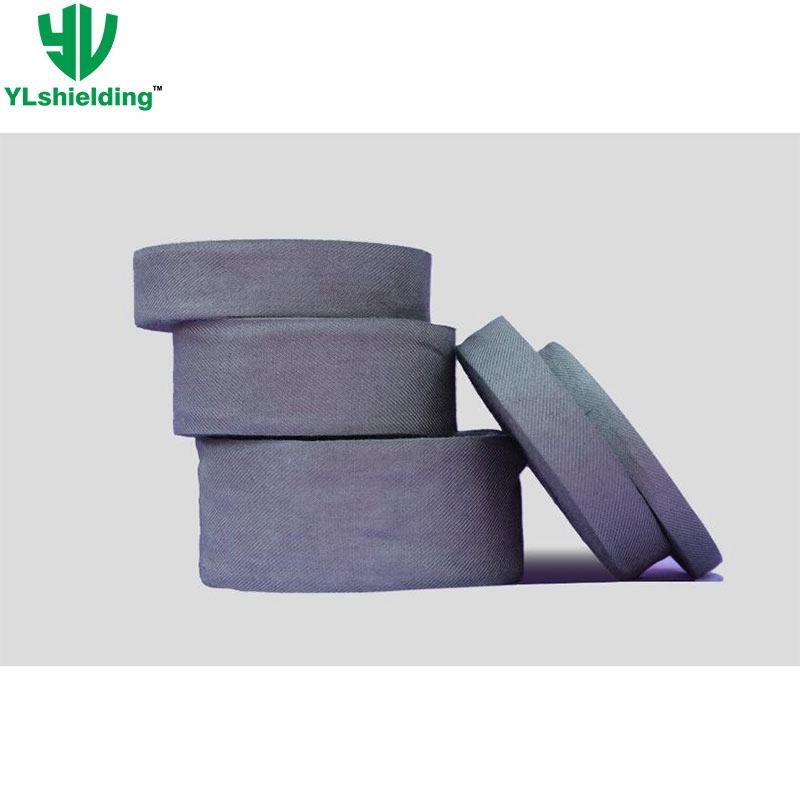

100% Stainless Steel Fiber Woven Tape

Model No.: YL-SS100T

Material: 100% 316L stainless steel fiber yarns

Width: 5 - 200 mm

Thickness: 0.3 - 4 mm

Product Features

100% stainless steel fiber woven tape is woven by 100% 316L stainless steel fiber yarns. It has the advantages of high temperature resistance, even surface, softness, high air permeability, as well as good electrical conductivity, low electrical resistance, good thermal conductivity, cutting resistance, anti-corrosion, abrasion resistance, etc.

Technical Data
Width5mm, 8mm, 10mm, 12mm, 17mm, 20mm, 25mm,30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 80mm,100mm, 150mm, 200mm
Fiber Diameter (µm)8,12
Yarn Count (Nm)16 Nm- 8 Nm
TexturePlain, Twill, Satin, Changeable, Multiple
Thickness (mm)0.3 - 4
Elongation (%)3 - 7
Applied Temperature500 – 600 °C
Melting Point1380 °C

Mold cladding materials for automotive glass shaping,

also used for other heat-resistant products that operate in high-temperature environments,

materials for high-temperature resistant conveyor belts,

machinery equipments to eliminate static electricity, etc.,

and various anti-static products.
