Heat Resistant Fabrics / Tapes / Sleeves

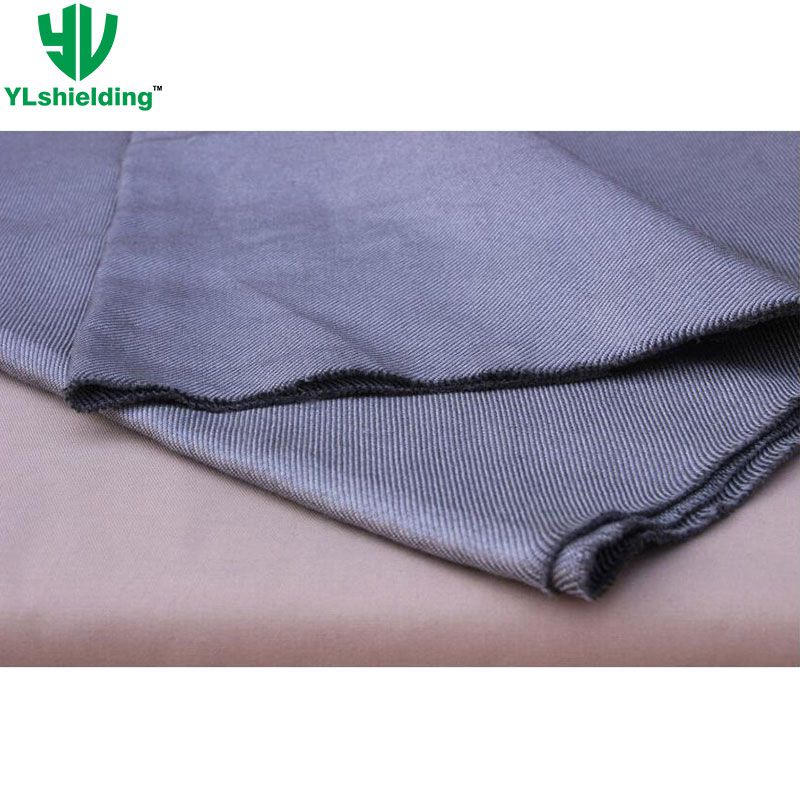

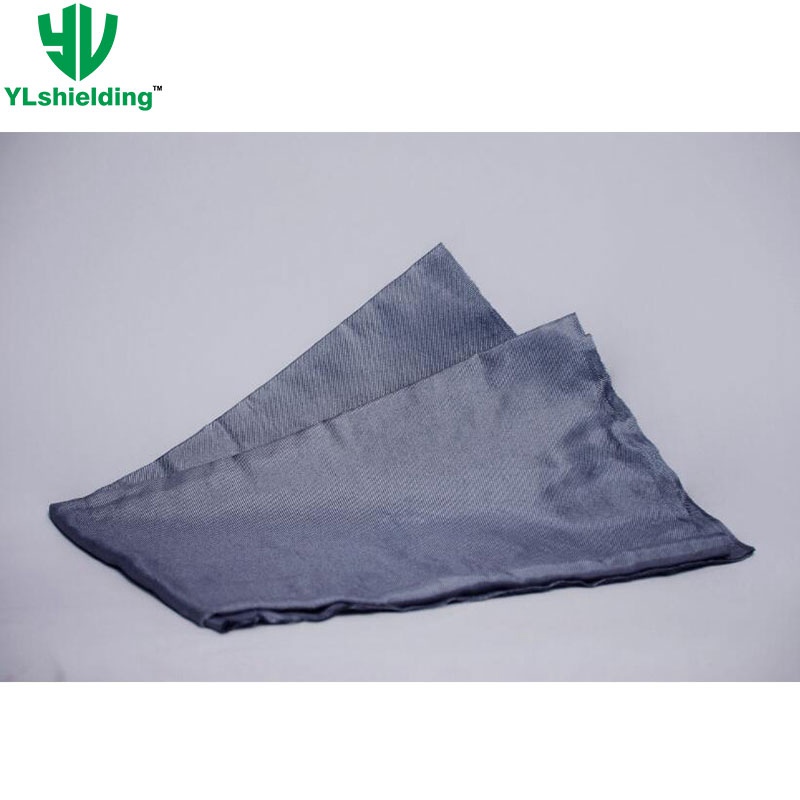

100% Stainless Steel Fiber Woven Fabric

Model No.: YL-SS158 / SS165 / SS180 / SS198

Material: 100% 316L stainless steel fiber yarns

Thickness: 0.5±0.05mm / 0.65±0.05 / 0.68±0.05 / 0.75±0.05

Weight: 580±20 g/m2 / 650±25 g/m2 / 800±25 g/m2 / 980±25 g/m2

Width: 100cm, 120cm, 150cm or 160cm

Product Features

100% stainless steel fiber woven fabric is plain / twill woven by 100% 316L stainless steel fiber yarns. It has the advantages of high temperature resistance, smooth surface, softness, high air permeability, high strength, as well as good electrical conductivity, low electrical resistance, good thermal conductivity, cutting resistance, anti-corrosion, abrasion resistance, etc.

Technical Data
Model No.YL-SS158YL-SS165YL-SS180YL-SS198
Width100cm, 120cm, 150cm, 160cm
Fiber Diameter (µm)888,128,12
Yarn Count (Nm)16 Nm/212 Nm/28.6 Nm/26 Nm/2
TexturePlain, Twill
Thickness (mm)0.5±0.050.65±0.050.68±0.050.75±0.05
Weight (g/m2)580±20650±25800±25980±25
Air Permeability (mm/s)1200±1001180±1001100±100950±100
Applied Temperature500 – 600 °C
Melting Point1380 °C

Mold cladding materials for automotive glass shaping,

also used for other heat-resistant products that operate in high-temperature environments,

materials for high-temperature resistant conveyor belts

and machinery equipments to eliminate static electricity, etc.,

filter cloth for acid or alkali materials.
