Nickel Copper Plated Conductive Fabrics

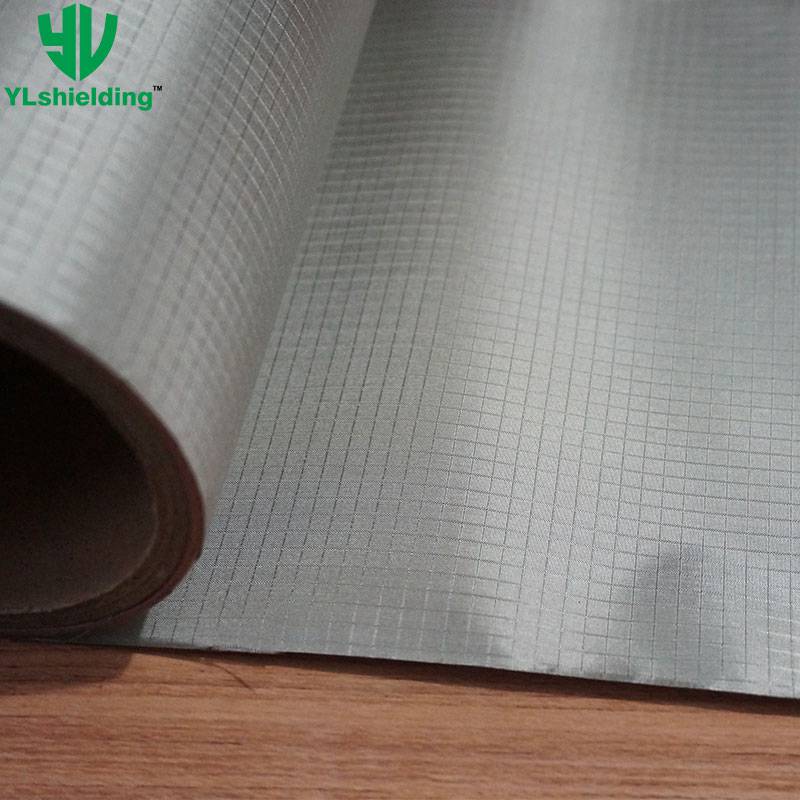

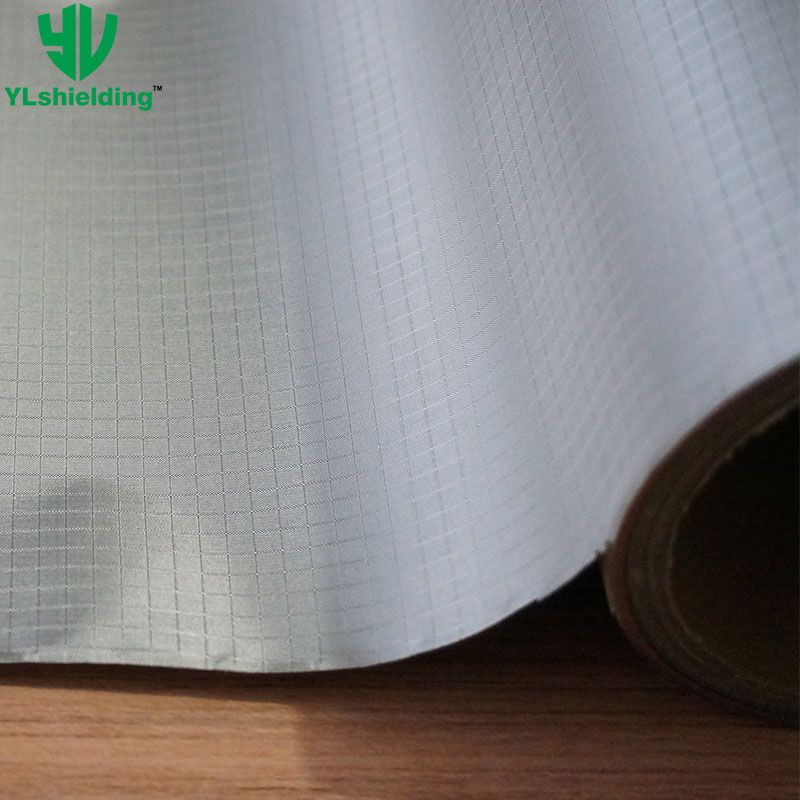

Nickel Copper Plated Ripstop Conductive Fabric

Model No.: YL-NCR36

Composition: PET/Cu + Ni

Thickness: 0.10±0.01 mm

Weight: 90±10 g/sqm

Width: 140 cm

Product Features

This ripstop conductive fabric is made with nickel and copper plated on rip-stop polyester fabric. It has much better conductive / shielding performance, perfect protection against wide range of high frequency electromagnetic radiations and low frequency electric fields, usually used for electronics and RFID blocking, etc.

Technical Data
Density260±10 T
Thickness0.10±0.01 mm
Weight90±10 g/sqm
Width140 cm
Surface Resistivity≤ 0.05 Ω/sq
Shielding Effectiveness≥ 70dB / 99.99999% (10MHz-3GHz)

Electronics, RFID blocking, EMF Protection Clothing, etc.

Test Report

RoHS2.0 Compliant


Black / Gray coated

with a conductive self-adhesive film (Conductive Tape)

Flame retardant type (with a thermo adhesive film) UL94V0 grade

with a hot met adhesive film
