Nickel Copper Plated Conductive Fabrics

Nickel Copper Plated Mesh Conductive Fabric

Model No.: YL-NCM32

Composition: PET/Cu + Ni

Thickness: 0.09±0.01 mm

Weight: 45±10 g/sqm

Width: 140 cm

Product Features

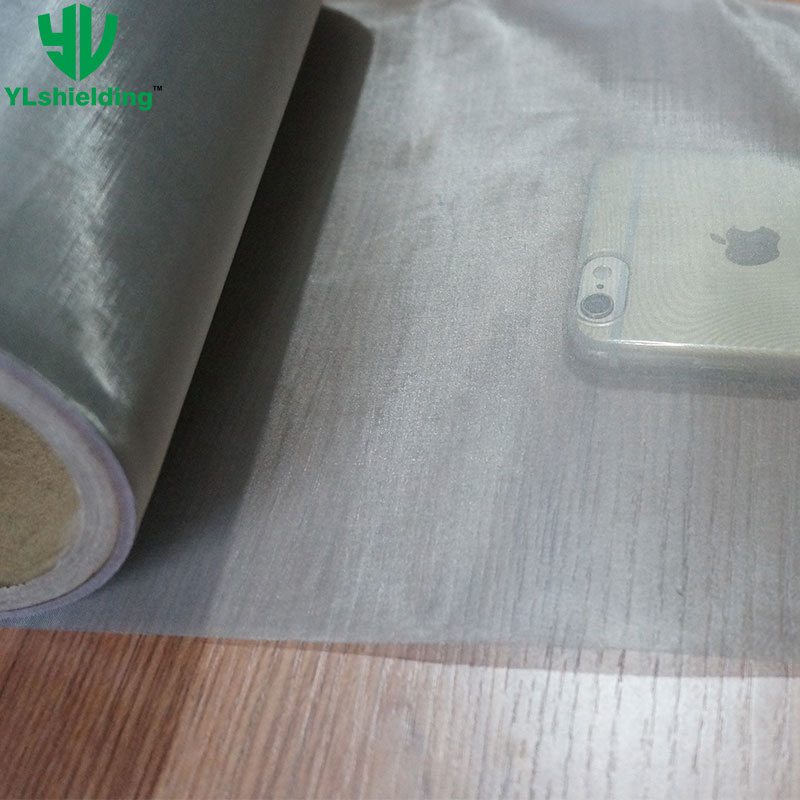

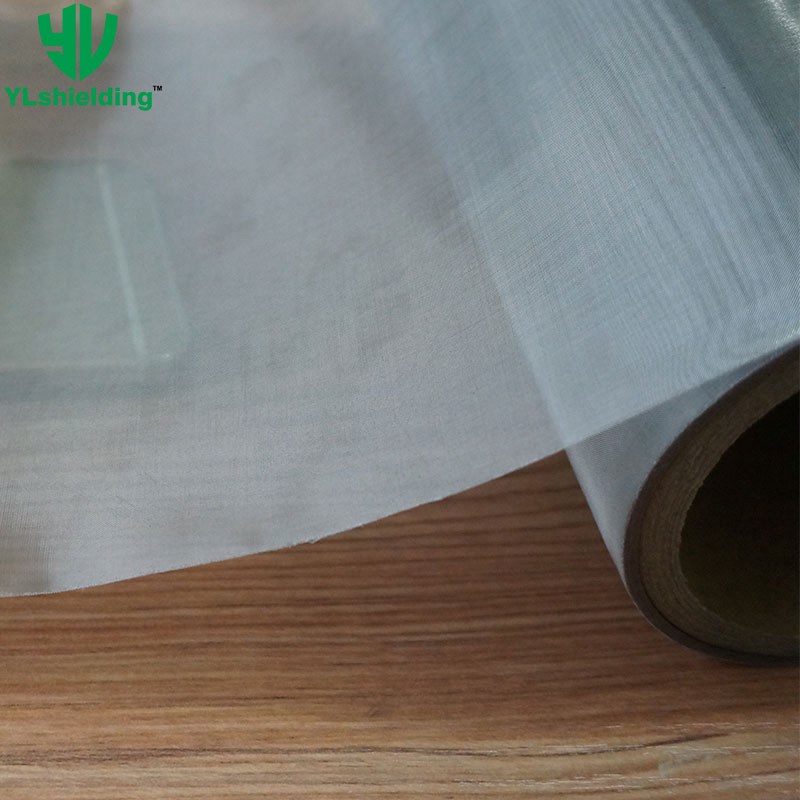

This mesh conductive fabric is made with nickel and copper plated on mesh polyester fabric. It has good conductive/shielding performance, perfect protection against wide range of high frequency electromagnetic radiations and low frequency electric fields, usually used for electronics and window / room shielding, etc.

Technical Data
Density125±10 T
Thickness0.09±0.01 mm
Weight45±10 g/sqm
Width140 cm
Surface Resistivity≤ 0.1 Ω/sq
Shielding Effectiveness≥ 50 dB / 99.999% (10MHz-3GHz)

Electronics, Window / Room Shielding (Window screen / curtain, Wall covering), etc.
