Nickel Copper Plated Conductive Fabrics

Nickel Copper Plated Plain Woven Conductive Fabric

Model No.: YL-NCP39

Composition: PET/Cu+Ni

Thickness: 0.08±0.01 mm

Weight: 80±10 g/sqm

Width: 130 cm

Product Features

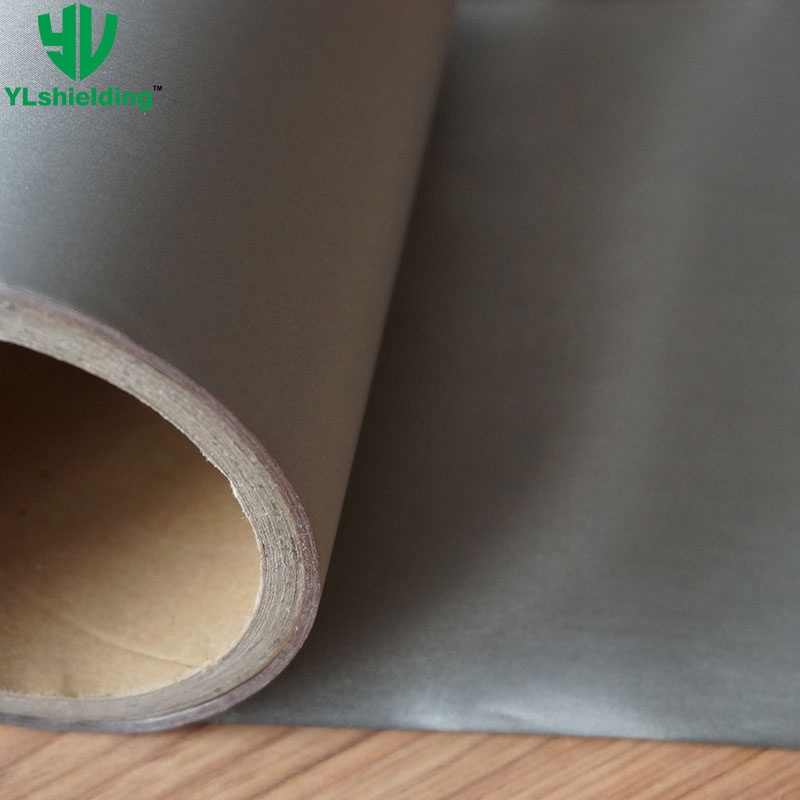

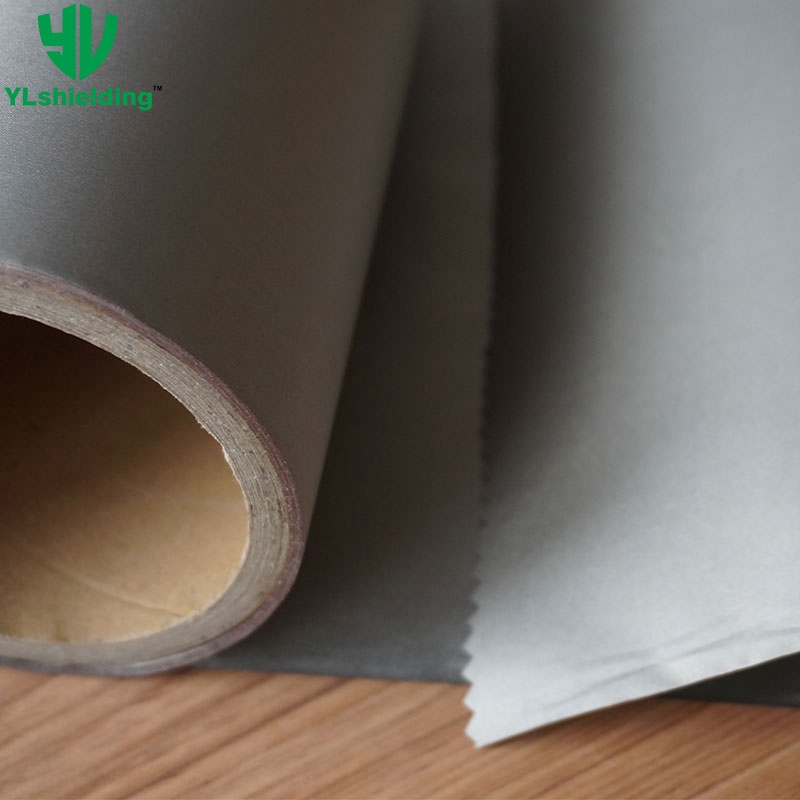

This plain woven conductive fabric is made with nickel and copper plated on polyester taffeta fabric. It has much better conductive / shielding performance, perfect protection against wide range of high frequency electromagnetic radiations and low frequency electric fields, usually used in electronic products and EMF shielding jackets / workwear, etc.

Technical Data
Density260±10 T
Thickness0.08±0.01 mm
Weight80±10 g/sqm
Width130 cm
Surface Resistivity≤ 0.05 Ω/sq
Shielding Effectiveness≥ 60 dB / 99.9999% (10MHz-3GHz)

Electronics, EMF Shielding Garments, etc.


Black / Gray coated

with a conductive self-adhesive film (Conductive Tape)

Flame retardant type (with a thermo adhesive film) UL94V0 grade

with a hot met adhesive film
